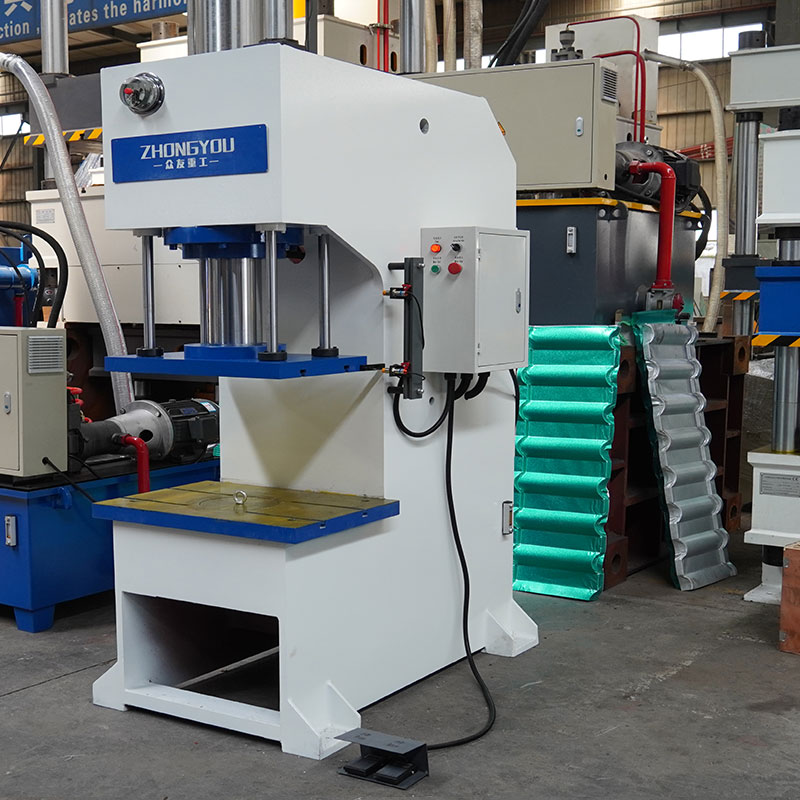

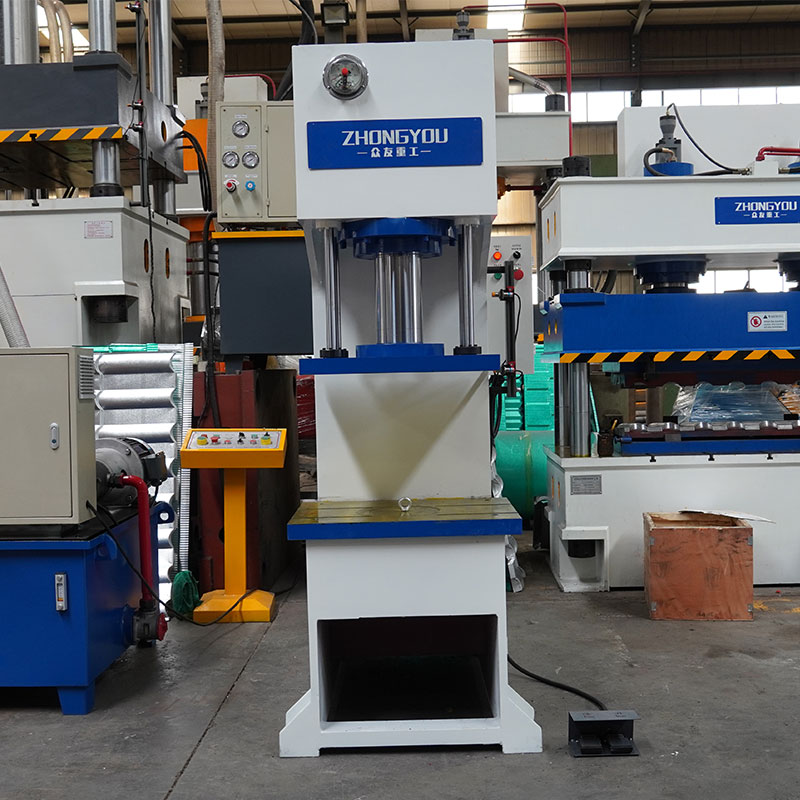

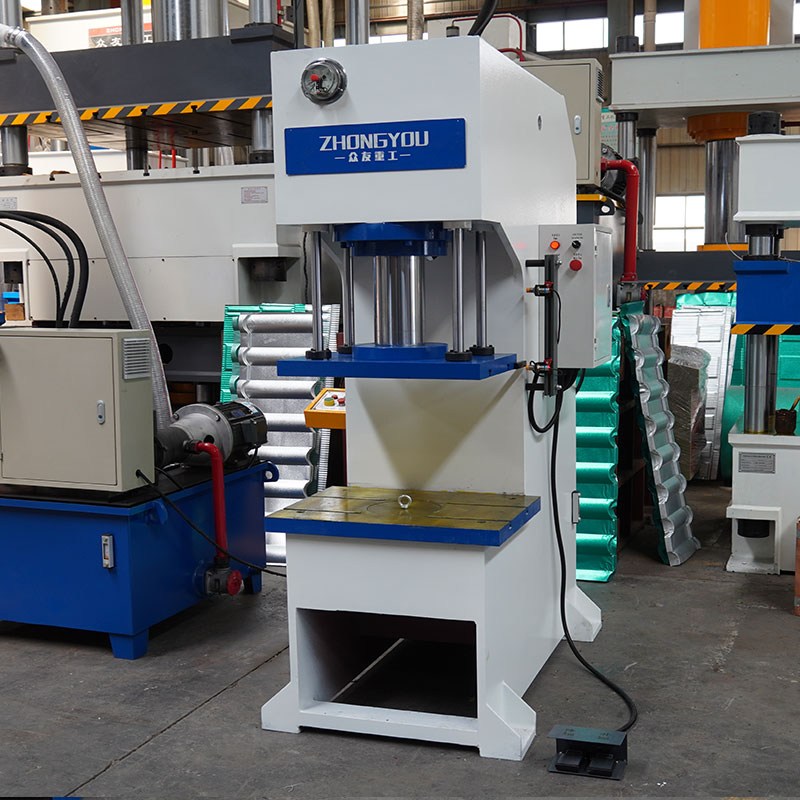

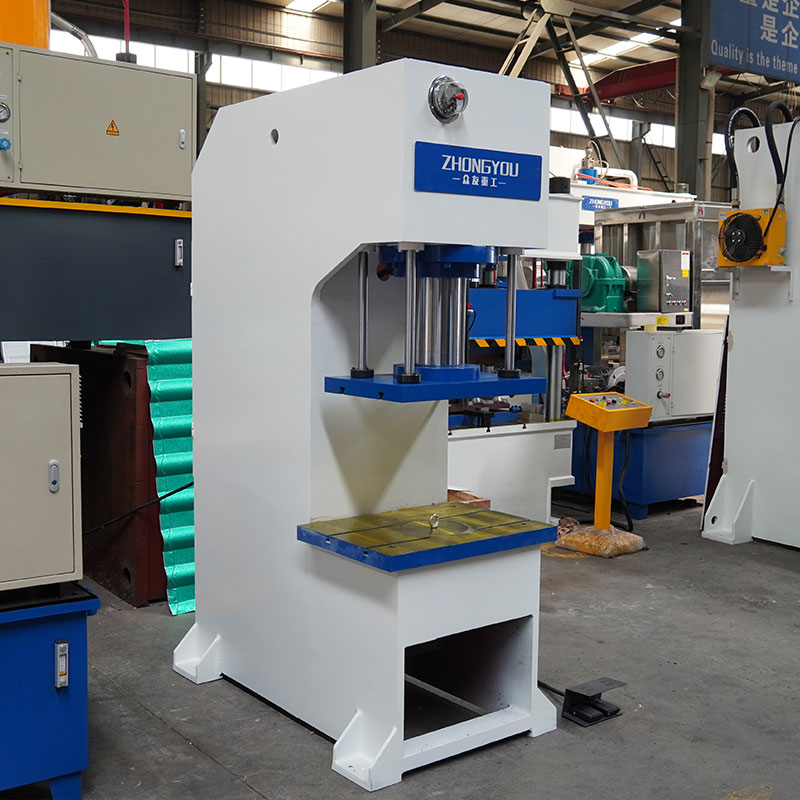

High Precision 100T Single Arm Hydraulic Press for Hardware Forming and Bearing Press Fitting
The 100-ton single-arm hydraulic press, also known as the C-frame single-column hydraulic press, is a small heavy-duty hydraulic equipment with compact structure, flexible operation and strong versati
+86 13562463338
+86 13562463338
Video Display
Product Introduction
The 100-ton single-arm hydraulic press, also known as the C-frame single-column hydraulic press, is a small heavy-duty hydraulic equipment with compact structure, flexible operation and strong versatility.
Adopting a unique open C-frame single-column design with three-sided transparent and unobstructed structure, it greatly releases the operating space, can easily process long shafts, strips and special-shaped ultra-wide workpieces with convenient and efficient loading and unloading. It is suitable for processing various irregular-size workpieces with far higher operation flexibility than traditional four-column hydraulic presses
The 100-ton single-arm hydraulic press has a wide range of application scenarios, and is mainly suitable for straightening, press fitting, stamping, shaping, punching, bending and embossing of various metal workpieces. It is widely used in machinery manufacturing, hardware processing, auto parts, agricultural machinery parts, electrical machinery, mold processing, mechanical equipment maintenance and other industries. It can specifically complete the precision straightening of various shafts, screw rods, round steel and profiles, the interference press fitting of bearings, shaft sleeves and bushings, and the pressing forming of small hardware parts, metal sheets and plastic parts. As a universal and versatile hydraulic equipment for parts processing, equipment maintenance and non-standard small part forming, it is highly favored by small and medium-sized manufacturing enterprises and maintenance processing factories.
Technical Parameters| Name | Unit | YQ41-20 | YQ41-40 | YQ41-63 | YQ41-100 | YQ41-160 | YQ41-200 | YQ41-250 | YQ41-315 | YQ41-500 |
|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 200 | 400 | 630 | 1000 | 1600 | 2000 | 2500 | 3150 | 5000 |
| Effective Stroke | mm | 200 | 200 | 300 | 300 | 400 | 500 | 200 | 500 | 500 |
| Opening Height | mm | 600 | 600 | 700 | 700 | 800 | 1000 | 1000 | 1200 | 1200 |
| Throat Depth | mm | 200 | 220 | 240 | 280 | 320 | 360 | 420 | 500 | 600 |
| Downstroke Speed | mm/s | 160 | 19 | 13 | 10 | 13 | 15 | 15 | 50 | 50 |
| Return Speed | mm/s | 19 | 25 | 17 | 13 | 20 | 20 | 20 | 60 | 55 |
| Worktable Width (Left to Right) | mm | 500 | 500 | 600 | 700 | 700 | 800 | 900 | 1050 | 1200 |
| Worktable Depth (Front to Back) | mm | 400 | 400 | 450 | 500 | 600 | 700 | 800 | 900 | 1050 |
| Punching Hole Diameter | mm | 80 | 100 | 120 | 200 | 200 | 220 | 220 | 240 | 240 |
Pressing process
Customer Case
| Name | Unit | YQ41-20 | YQ41-40 | YQ41-63 | YQ41-100 | YQ41-160 | YQ41-200 | YQ41-250 | YQ41-315 | YQ41-500 |
|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Force | kN | 200 | 400 | 630 | 1000 | 1600 | 2000 | 2500 | 3150 | 5000 |
| Effective Stroke | mm | 200 | 200 | 300 | 300 | 400 | 500 | 200 | 500 | 500 |
| Opening Height | mm | 600 | 600 | 700 | 700 | 800 | 1000 | 1000 | 1200 | 1200 |
| Throat Depth | mm | 200 | 220 | 240 | 280 | 320 | 360 | 420 | 500 | 600 |
| Downstroke Speed | mm/s | 160 | 19 | 13 | 10 | 13 | 15 | 15 | 50 | 50 |
| Return Speed | mm/s | 19 | 25 | 17 | 13 | 20 | 20 | 20 | 60 | 55 |
| Worktable Width (Left to Right) | mm | 500 | 500 | 600 | 700 | 700 | 800 | 900 | 1050 | 1200 |
| Worktable Depth (Front to Back) | mm | 400 | 400 | 450 | 500 | 600 | 700 | 800 | 900 | 1050 |
| Punching Hole Diameter | mm | 80 | 100 | 120 | 200 | 200 | 220 | 220 | 240 | 240 |
