Round steel calibration single arm hydraulic press
This is a round steel straightening single-arm hydraulic press customized by Shandong Zhongyou Heavy Industry for Zibo customers is a kind of special equipment that uses hydraulic transmission technol

+86 13562463338

+86 13562463338
Video Display
Product Introduction

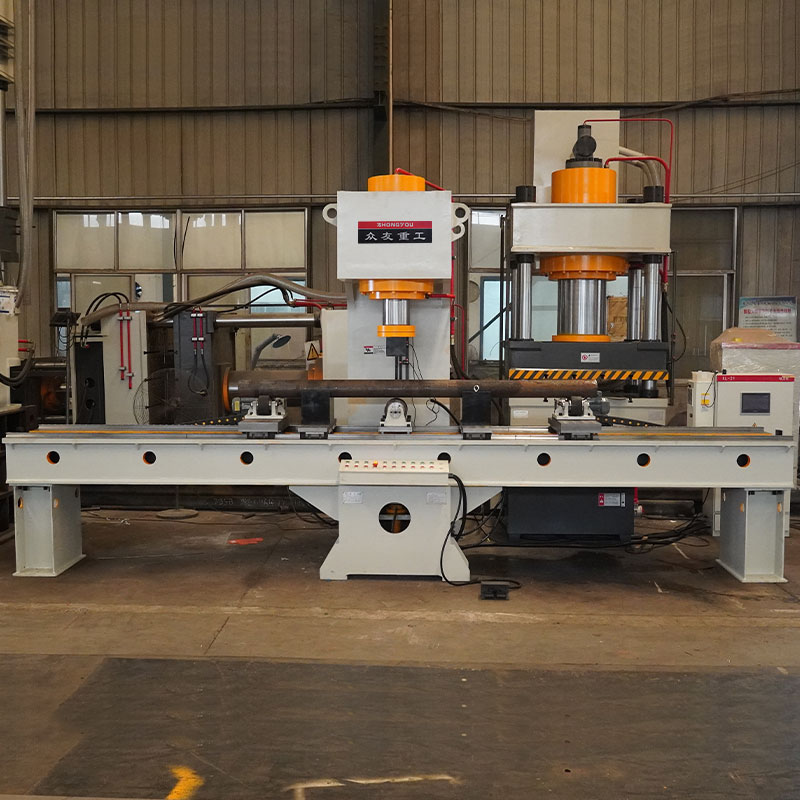

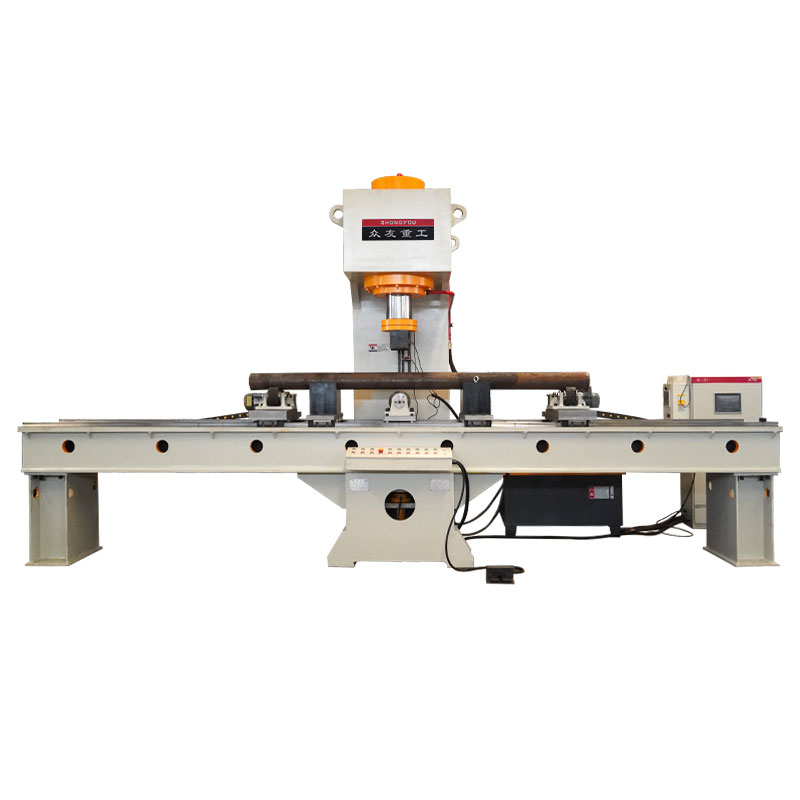

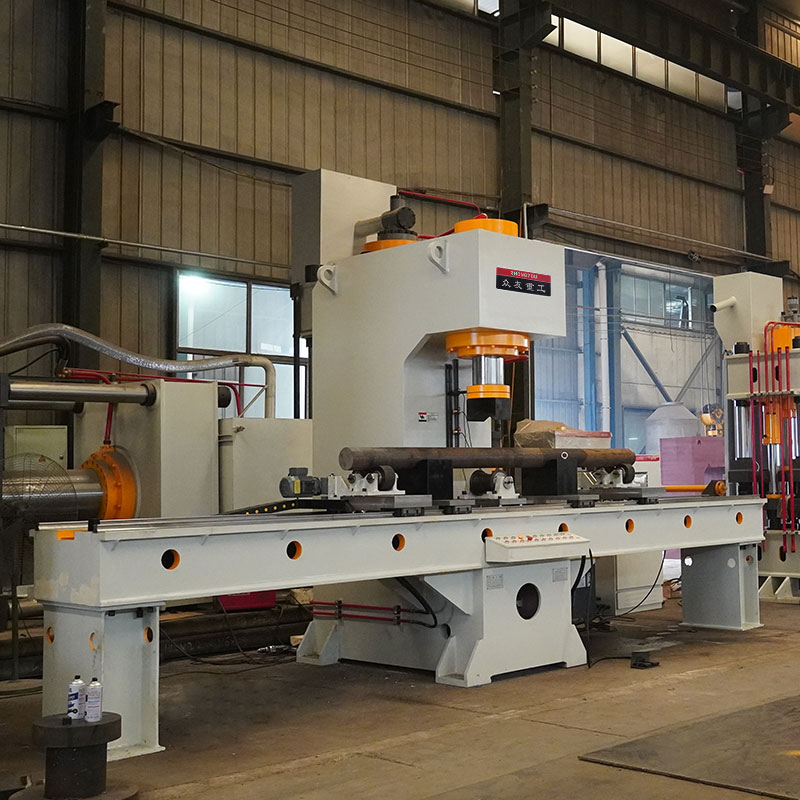

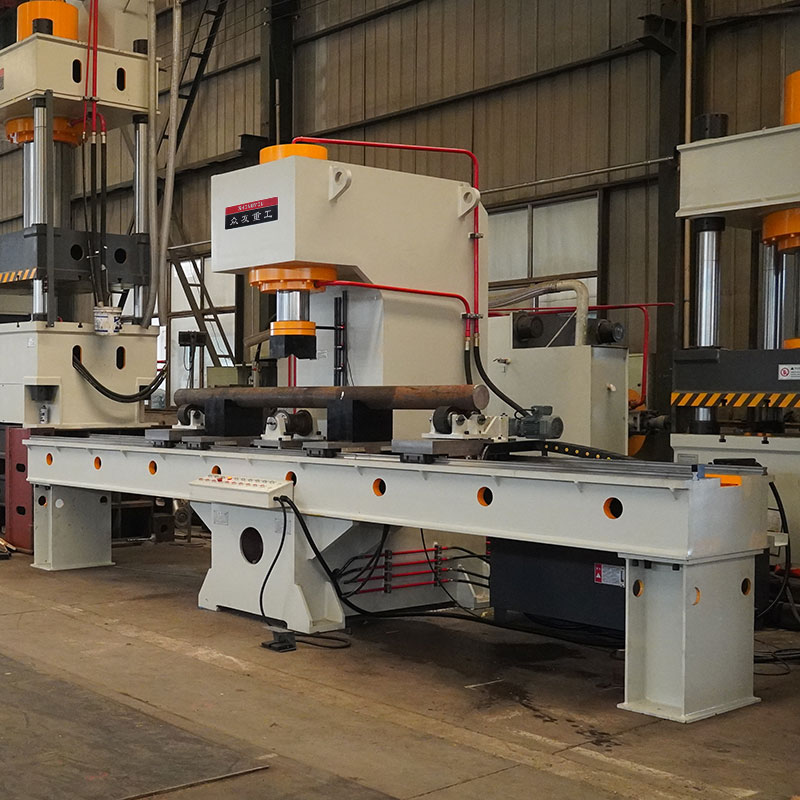

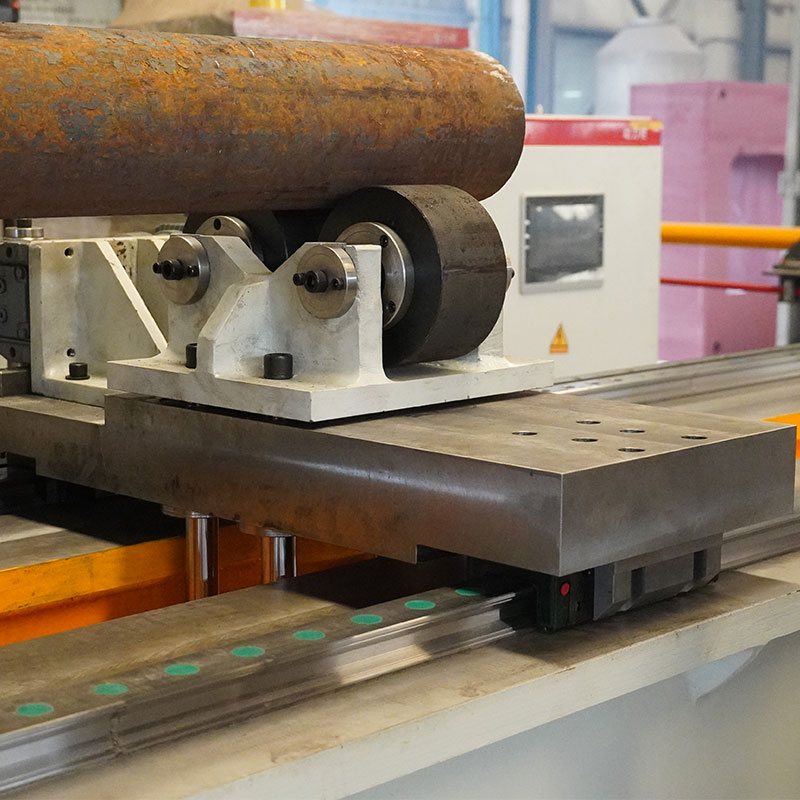

This is a round steel straightening single-arm hydraulic press customized by Shandong Zhongyou Heavy Industry for Zibo customers is a kind of special equipment that uses hydraulic transmission technology to straighten, press-fit and form shaft parts such as round steel by driving the press head with a high-pressure cylinder.
Typical Application Scenarios
Machinery manufacturing: straightening motor shafts, gear shafts, optical shafts, etc., straightness error ≤ 0.05mm/m.
Automobile industry: press fitting transmission shafts, half shafts, pressure range of 50T-200T, to meet the demand for high-strength connections.
Energy field: straighten wind and electric spindles, oil and gas pipelines, the stroke can reach more than 1000mm, to adapt to large workpieces.
Aerospace industry: precision straightening of titanium alloy shaft parts, pressure control accuracy of ±0.5%, to ensure material properties.
Technical Parameters
Name | Unit | YQ41-20 | YQ41-40 | YQ41-63 | YQ41-100 | YQ41-160 | YQ41-200 | YQ41-250 | YQ41-315 | YQ41-500 |
---|---|---|---|---|---|---|---|---|---|---|
Nominal Force | kN | 200 | 400 | 630 | 1000 | 1600 | 2000 | 2500 | 3150 | 5000 |
Effective Stroke | mm | 200 | 200 | 300 | 300 | 400 | 500 | 200 | 500 | 500 |
Opening Height | mm | 600 | 600 | 700 | 700 | 800 | 1000 | 1000 | 1200 | 1200 |
Throat Depth | mm | 200 | 220 | 240 | 280 | 320 | 360 | 420 | 500 | 600 |
Downstroke Speed | mm/s | 160 | 19 | 13 | 10 | 13 | 15 | 15 | 50 | 50 |
Return Speed | mm/s | 19 | 25 | 17 | 13 | 20 | 20 | 20 | 60 | 55 |
Worktable Width (Left to Right) | mm | 500 | 500 | 600 | 700 | 700 | 800 | 900 | 1050 | 1200 |
Worktable Depth (Front to Back) | mm | 400 | 400 | 450 | 500 | 600 | 700 | 800 | 900 | 1050 |
Punching Hole Diameter | mm | 80 | 100 | 120 | 200 | 200 | 220 | 220 | 240 | 240 |

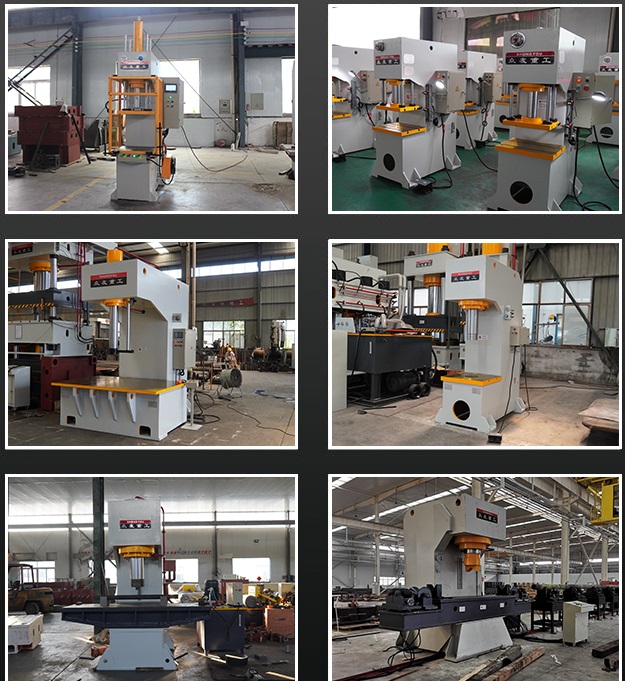

Pressing process
